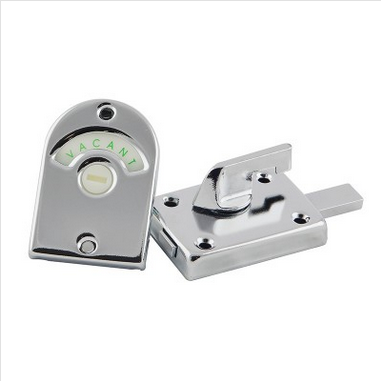

The toilet indicator bolt is an excellent budget door latching hardware used to indicate whether the cubicle is vacant or occupied. It is often used for toilets doors in public areas.

• Length 60mm x Width 40mm
• Chrome plated finish
• Supplied in retailer pack of 1 set per card.

For installation - 1) Drill a 12mm hole into door for the bolt. 2) Place the bolt on the outside and drill screw holes. 3) Install the bolt. 4) Insert the spindle into the bolt through the 12mm hole.

5) Turn door bolt in fully open position and install indicator at "VACANT" position. 6) Close the door, push the bolt to close position and make a pencil mark. 7) Use a chisel to cut out the hole.
